Switch-Pros SP-9100 Bezel Style 8-Switch Panel Power System

Switch-Pros SP-9100 Bezel Style 8-Switch Panel Power System

549.00

NOW FEATURING RGB BACKLIGHTING TO MATCH YOUR VEHICLE!

All Systems now Include:
-Dimming for lighting outputs
-Two External triggers which can activate up to 4 outputs each
-Battery Voltage display on app screen

Estimated 2-weeks lead time

Installation Guide

Quantity:
Add To Cart

Details:

  • Eight user-programmable switches

  • Four 35A circuits and four 18A circuits

  • Waterproof, Solid State 125A Power Module

  • RGB Backlighting provides unlimited color options, using Color Picker on App

  • Daisy Chain up to 3 Switch Panels to One Power Module

  • Switches can be programmed for:

  • On/Off or Momentary

  • Ignition or Battery Input

  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

  • Memory Function

  • Master Mode, with ability to turn multiple outputs On AND Off with one touch

  • Automatic Power-Up upon vehicle start up

  • Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)

  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns

  • Sleep Mode for minimal power consumption

  • Color Coded circuit wires

  • 100 User-selectable switch legends

  • LED Input Status Indicators for easy troubleshooting

  • Time Delay Off function available for all circuits

  • Splash proof switch panel with Polycarbonate overlay faceplate

  • Program and control the system from switch panel pad or smart phone

  • Bluetooth interface with FREE Apple or Android App

  • Battery Voltage Readout on App screen

  • No Fuses or Bulky Relay box

  • Built-In Bluetooth Module

Switch Panel Specs:

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting

  • Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation

  • Orange LED switch indicators

  • 100 User Selectable Legends

Power Module Specs:

  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A

  • 125A maximum rating

  • Waterproof and Solid State

  • 6”L x 3”W x .5”H (excluding connectors)

  • LED Input Status Indicators for easy troubleshooting

  • Underhood rated 125° to -40°C

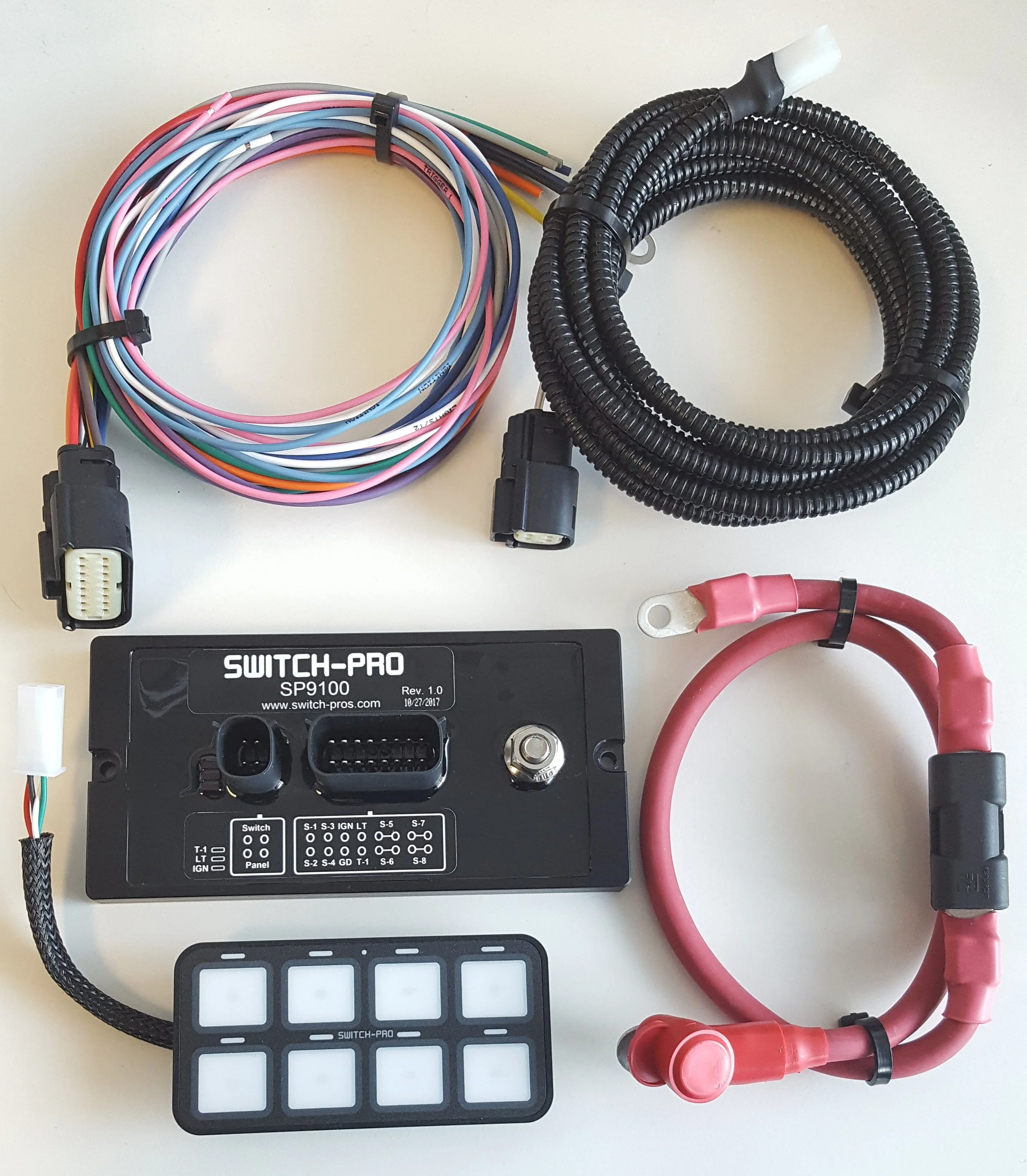

Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module

  • Color Coded Output wires

  • Wire harness with Waterproof, sealed automotive grade connectors

  • Power Cable with 125A inline fuse

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings.  There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
